Mechanical Concepts Teekay Couplings are available in two configurations, Axilock and Axiflex: |
||||||||||||
Teekay Axilock |
||||||||||||
Teekay Axiflex |
||||||||||||

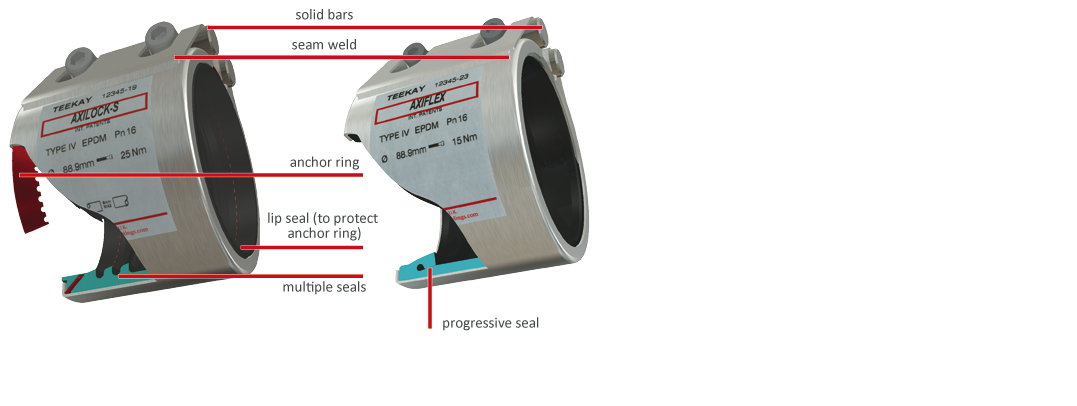

The Teekay Axilock has two metallic anchor rings that dig into the pipe wall when the coupling is installed. This prevents the two pipes from pushing apart under pressure or pulling away under end-load. |
The Teekay Axiflex joins pipes that are already anchored. In this instance the pipeline forces do not have to be contained by the couplings. Therefore diameters up to 4 metres are possible with this design. The coupling can be placed over the pipe ends or supplied in a wrap-around version. |
|||||||||||
 |
|
|
|
|
|
|
|
|
|
|
|
|
