1.4462 Duplex casings and fasteners available on request.
Sizes: 48.3mm to 323.9mm
Temperature: EPDM -40℃ to +100℃, NBR -20℃ to +80℃, HNBR -20℃ to +150℃, Viton -20℃ to +250℃
Pipe Materials: Carbon steel, cast and ductile iron, stainless steel, copper, cunifer, GRP, asbestos cement, HDPE, MDPE, PVC, uPVC, ABS
The Teekay Repair Clamp is the budget repair coupling of choice. Featuring “cut flanges” on the underside of the fitting, this type of coupling can be easily pulled around a leaking pipe to seal a fracture. Once wrapped around the pipe, the fitter then goes about installing the coupling in the same manner as any other Teekay coupling.
Suitable for emergency repairs in buildings and industrial units to avoid costly reinstatement work caused by water damage. The Teekay Repair Clamp represents excellent value for money both at point of order and at point of use, as significant installation time savings can be achieved with the light-weight stainless steel design.

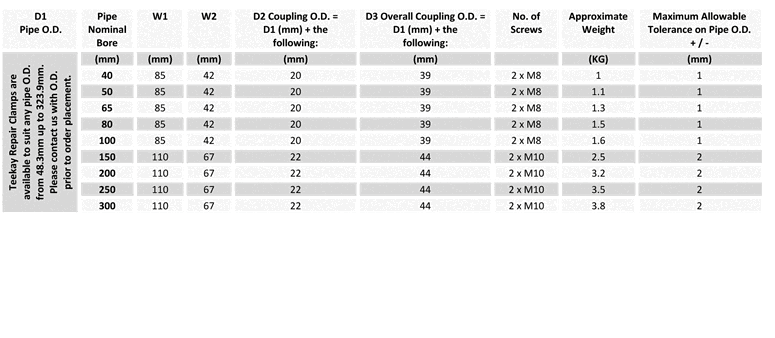

NOTES: The table below is a guide to the most common sizes. Couplings to suit specific outside diameters not listed may be manufactured to order. Please contact us for further details.
Repair Clamp
Material Selection
