Stepped Coupling |
||
 |
|
|
 |
||
|
|
|
Material Selection |
||
|
|
|
 |
||
|
|
|
Sizes: 48.3mm to 3000.0mm
Temperature: EPDM -40℃ to +100℃, NBR -20℃ to +80℃, HNBR -20℃ to +150℃, Viton -20℃ to +250℃
Pipe Materials: Carbon steel, cast and ductile iron, stainless steel, copper, cunifer, GRP, asbestos cement, HDPE, MDPE, PVC, uPVC, ABS

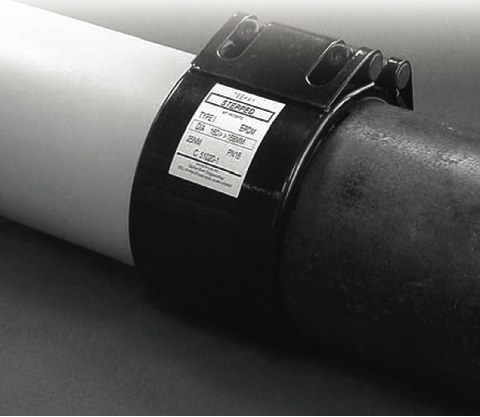

The Teekay Stepped coupling is a “problem-solver” on any site with the ability to join pipes of different ODs and different materials.
Typical applications:
- refurbishments (where the contractor is connecting a piping system back into the original layout)
- repairs to old water mains (where the pipe is so corroded it needs to be replaced with a new material in metric size)
- chamber connections
- pipe material transitions
- joining metallic pipe to plastic pipe
1.4462 Duplex casings and fasteners available on request.
Type V
Casing: High strength steel
Coating: Rilsan/PVC/Epoxy/Galvanized
Fasteners: Alloy Steel, PTFE Coated
Gasket: EPDM/NBR/HNBR/Viton
