Sizes: Smallest OD = 48.3mm, Largest OD = 2000mm.
Dismantling Joint materials: Stainless Steel Options = AISI 304/ AISI 316L. Coated Steel Options = Galvanized/ Rilsan/ PVC/ Epoxy
Temperature: EPDM -40℃ to +100℃, NBR -20℃ to +80℃, HNBR -20℃ to +150℃, Viton -20℃ to +250℃
Pipe Materials: Carbon steel, cast and ductile iron, stainless steel, copper, cunifer, GRP

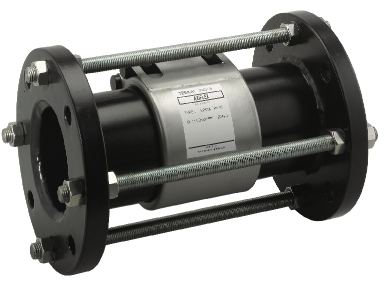

Teekay Dismantling Joints facilitate the easy access and removal of equipment when it comes to long-term maintenance of piping systems. Rather than moving large sections of fixed pipework, use the Dismantling Joint to create space and easy access to pumps, valves and flowmeters.
Teekay Dismantling Joints enable up to 100mm of longitudinal adjustment. Each joint comes with a Teekay Axiflex coupling and axial restraint is provided by the high tensile steel tie bars.
1.4462 Duplex casings and fasteners available on request.
Dismantling Joint
Coupling Material Selection
