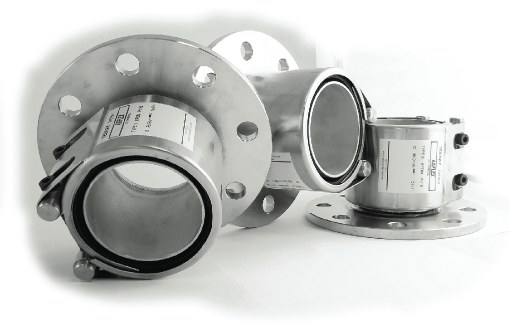

Flange Adaptor
Sizes: Smallest OD = 48.3mm, Largest OD = 2000mm
Flange Adaptor materials: Stainless Steel Options = AISI 304/ AISI 316L. Coated Steel = Galvanized/ Rilsan/ PVC/ Epoxy
Temperature: EPDM -40℃ to +100℃, NBR -20℃ to +80℃, HNBR -20℃ to +150℃, Viton -20℃ to +250℃
Pipe Materials: Carbon steel, cast and ductile iron, stainless steel, copper, cunifer, GRP
Teekay Flange Adaptors make the installation of pumps and valves quicker and easier. Simply bolt the flange adaptor on to the existing flange and fasten the coupling over the join between the flange adaptor and plain end pipe. This creates a useful maintenance point in the future: undo the bolts on the coupling rather than the nuts on the flange adaptor and lift out the piece of equipment!
Teekay Flange Adaptors can be fabricated to any pipe O.D. and are available in standard and non-standard drillings. Choose an Axiflex coupling to accommodate expansion and contraction or an Axilock for a fully anchored solution (depending on diameter and pressure).
1.4462 Duplex casings and fasteners available on request.
