Sizes: 60mm, 80mm, 100mm
Temperature: EPDM -40℃ to +100℃, NBR -20℃ to +80℃, HNBR -20℃ to +150℃, Viton -20℃ to +250℃
Pipe Materials: Box section.

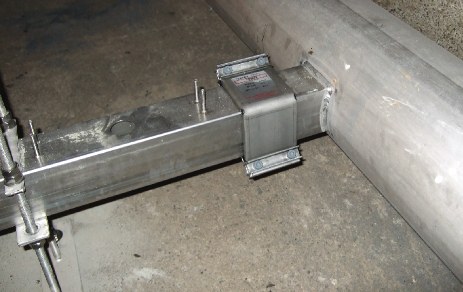

Teekay Square Couplings provide a comprehensive solution to joining box section without the need for hot working onsite. Available in 60mm, 80mm and 100mm sizes, the square coupling lends itself to the joining of aeration pipes. Expansion and contraction can also be accommodated as the coupling is supplied as a non-anchoring type. High temperature gasket options are available.

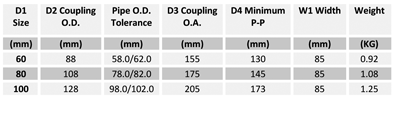

NOTES: This table is a guide to the most common sizes. Couplings to suit specific outside diamters not listed may be manufactured to order. Please contact us for further details.
Square Coupling
Material Selection
